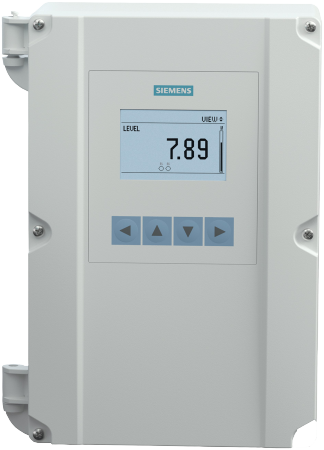

Siemens SITRANS LT500 HydroRanger/MultiRanger

SITRANS LT500 is the next evolution of digital level, flow, and pump controllers for radar and ultrasonic transmitters – or any 2-wire 4-20 mA device. It is the first choice for radar sensor measurements at 80 GHz and features single and dual point measurements, 6 relays, and Modbus RTU, HART, PROFIBUS DP, PROFIBUS PA, PROFINET.

Product features

Easy to use, configurable HMI display with local four-button programming, menu-driven parameters, and Wizard support for key applications.
English, German, French, Spanish, Chinese, Italian, Portuguese, Japanese, Danish, Dutch, Swedish, Finnish, Polish, Russian, and Korean languages on the HMI.
Removable terminal blocks for ease of wiring
Digital inputs for back-up level override from point level device, totalizer control, or pump interlock.
Communication options for HART, Modbus RTU, Modbus TCP, PROFIBUS PA, PROFIBUS DP, PROFINET, EtherNet/IP.
Configuration and monitoring via WebIQ (browser based) over PROFINET, EtherNet/IP, or Modbus TCP
Remote configuration and diagnostic management of supported sensors (SITRANS LR110, SITRANS LR120, SITRANS Probe LU240).
Single or dual point level monitoring
Advanced process intelligence echo processing for reliable accurate measurement in difficult applications
Parameter back-up and copy functions.

Description

SITRANS LT500 is a versatile, single and multi-vessel level monit or/controller for virtually any application in a wide range of industries.
