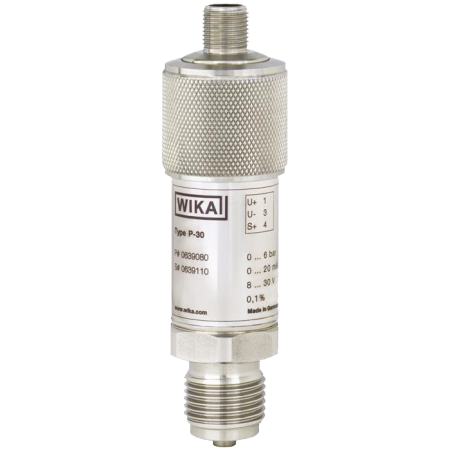

WIKA P-30, P-31

Pressure sensor - For precision measurements

Product features

Accuracy 0.1 %, without additional temperature error in a range of 10 ... 60 °C
Optional accuracy of 0.05 % (full scale) available
Fast measuring rates up to 1 kHz
Analogue, USB and CANopen® output signals available
On-site calibration possible using product software

Description

The model P-30 and P-31 pressure sensors have been developed for precision measurements and guarantee precision measurements with a maximum measuring deviation of as low as 0.05 % of span. As a result of their active temperature compensation, these pressure transmitters have no additional temperature error in the range of 10 ... 60 °C.
