System Cleaners Evo Satellite Stations Manual
SubCategory:
Manufacturer: SystemCleaners
Industry:
Let us help you find the right product from this series
Product features
- The Evo manual satellite range currently includes S1 Evo and S2 Evo → supports a cleaning setup matched to the required duty
- S1 Evo has one chemical inlet and can use two products on the same inlet, with the same concentration and a mixing risk that must be considered → gives engineers verified operating data for model selection
- Separate injectors on S2 Evo reduce unwanted chemical mixing, while fixed dosing limits unauthorised concentration adjustment → supports reliable day-to-day operation
- System Cleaners construction for food and beverage cleaning → supports use in hygiene-critical processing environments
- Application-specific pressure, flow and chemical options → allows configuration around the actual cleaning task
- Service-oriented component access → helps reduce maintenance time and downtime risk
- Matching accessories and connection options → simplifies integration with the wider cleaning installation
- Defined operating limits by variant → helps avoid under- or over-specifying the cleaning point
- Professional low-pressure cleaning concept → supports controlled cleaning with less unnecessary mechanical impact on equipment surfaces
- AxFlow selection and service support → helps align configuration, maintenance and spare-parts planning with the installation

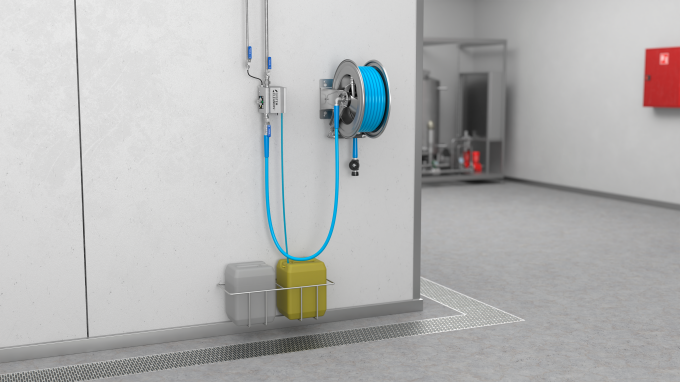

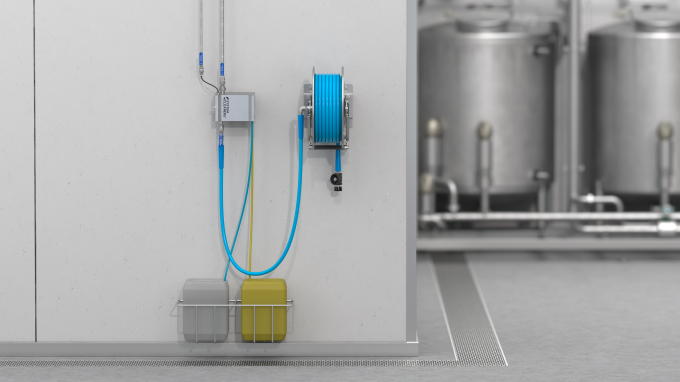

Evo manual satellite stations are used for manual rinsing, foam application and disinfection in food and beverage processing with compact, service-oriented workstations. They support hygiene teams where repeatable cleaning, safe operation and reliable access to water or chemicals are important for production continuity.
The Evo manual satellite range currently includes S1 Evo and S2 Evo. Both are available for mains-water operation at 3-8 bar or boosted-water operation at 15-25 bar; chemical concentration is fixed by a limiter, and chemical-contact O-rings use highly resistant ETP material.

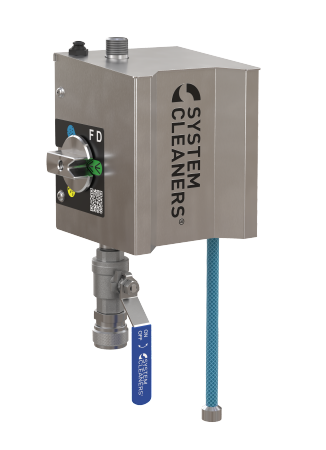

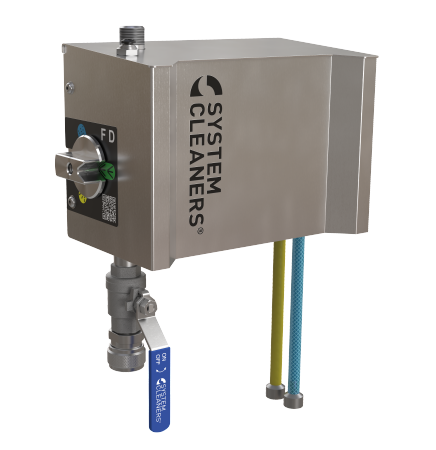

S1 Evo has one chemical inlet and can use two products on the same inlet, with the same concentration and a mixing risk that must be considered. S2 Evo handles two concentrated chemical products with separate injectors and can add a separate outlet for a third product.
Separate injectors on S2 Evo reduce unwanted chemical mixing, while fixed dosing limits unauthorised concentration adjustment. Compact hygienic cabinets and straightforward function selection support consistent operator use and easier servicing. AxFlow can support product selection, availability guidance, service and spare-parts planning for the required cleaning duty.
