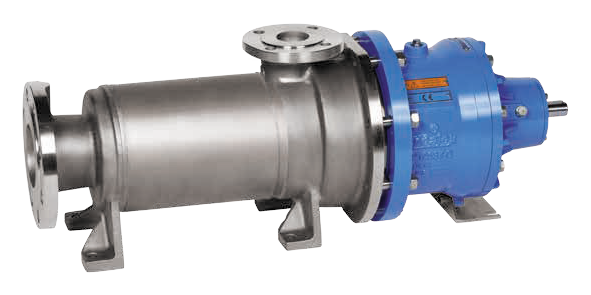

Klaus Union SLM SV
SubCategory: CentrifugalPumps
Manufacturer: KlausUnion
Industry:
Let us help you find the right product from this series
Key Specifications
- Flows up to 42 m³/h
Product features
- Application-specific self-priming side-channel magnet-drive pump → supports correct matching to the required process duty
- Capacity up to 42 m³/h → covers demanding industrial transfer duties within the published range
- Delivery capability of 470 m → supports the required hydraulic duty when correctly sized
- Temperature range -120 to +250 °C → enables selection for demanding process temperatures
- Pressure rating up to PN 400 → supports higher-pressure duties within the approved configuration
- DIN EN ISO 15783 basis → simplifies specification against recognised process-pump requirements
- self-priming side-channel design → supports reliable operation in the intended service
- Modular Klaus Union configuration options → help tailor materials and construction to the medium
- Serviceable industrial construction → supports planned maintenance and spare-parts strategies
- AxFlow selection and service support → helps reduce specification risk and lifecycle downtime
Klaus Union SLM SV is intended for low-flow, high-head and gas-containing liquid duties. The range is relevant where process reliability, controlled fluid handling and equipment availability are important selection criteria, particularly in chemical, petrochemical, energy and other process-industry installations.
The pump uses self-priming side-channel design; gas handling; up to 8 stages; magnet drive. This construction is selected to match the hydraulic duty, process medium, installation arrangement and sealing philosophy while keeping maintenance access and operating stability in focus.
Current Klaus Union data publishes a capacity up to 42 m³/h, a delivery capability of 470 m, a temperature range of -120 to +250 °C and a pressure rating up to PN 400. The family is based on DIN EN ISO 15783; exact limits depend on pump size, material, operating point and selected configuration.
Correct selection can reduce leakage risk, unplanned maintenance and process interruptions over the equipment life cycle. AxFlow can support duty-point review, materials and configuration selection, spare parts and service planning; contact AxFlow to identify the appropriate Klaus Union SLM SV configuration and availability.
