Dosing of catalyst in the production of silicones

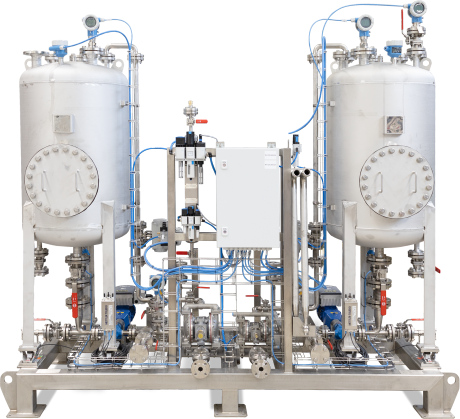

The barrel with the input material is connected by a flexible hose to the skid inlet, from where the medium is pumped by a stainless steel AODD pump into a stainless steel buffer tank, which is built on a strain gauge scale. The tank is filled automatically based on the current level, which is continuously detected by a radar sensor. The dosing itself is provided by a pump with internal gears.

SYSTEM PARAMETERS

• Flow rate: 175 l/h
• Pressure: 4 bar
• Medium: catalyst
• Medium concentration: 100 %
• Medium temperature: 20 °C
• Viscosity: 800 cP
• Tank capacity: 2 × 350 l
• Height: 2.5 m
• Footprint: 2.8 × 1.1 m
• Weight: 600 kg
• Materials: Stainless steel 1.4571

Used components

Viking 724, Sandiper S1F, Mettler-Toledo strain gauge scales, 350l buffer tanks

Features

Unblanketed tanks equipped with a fine filter for air aspiration and a bidirectional rupture disk to protect the vessel against overpressure and underpressure
