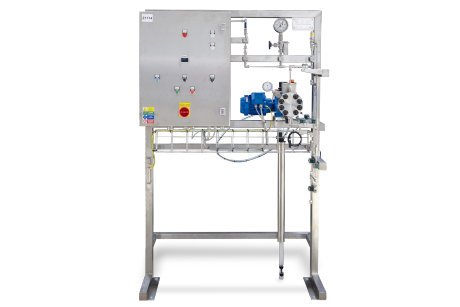

High-pressure sodium phosphate injection
High-pressure spray unit for very small amounts of chemicals from an IBC container.
The demanding high-pressure dosing of small quantities is solved by a piston diaphragm pump in a durable design, which guarantees both high pressures and really small amounts of liquid. Integrated suction needle with float sensors enabling dripless IBC replacement and empty IBC detection. The built-in switchboard also enables local and remote control of the spray, including speed selection.
SYSTEM PARAMETERS
- Flow rate: 0.2 l/h
- Pressure: 56 bar
- Accuracy: 2 %
- Medium: sodium phosphate
- Medium temperature: 20 °C
- Viscosity: 43 cP
- Height: 2 m
- Footprint: 0.4 × 1.2 m
- Weight: 150 kg
- Materials: SS316Ti, SS316L, PVDF
- Used components: B+L Novados H1
Features
This system combines high pressure with a very low flow rate, offering both local and remote control for maximum flexibility. It features a wide range of adjustable speeds and ensures problem-free deaeration. The IBC container is equipped with level detection and a secure needle fixation, while the safety and bleeding line are reliably returned to the container for a clean and safe process.
