Mixing and dosing base paint

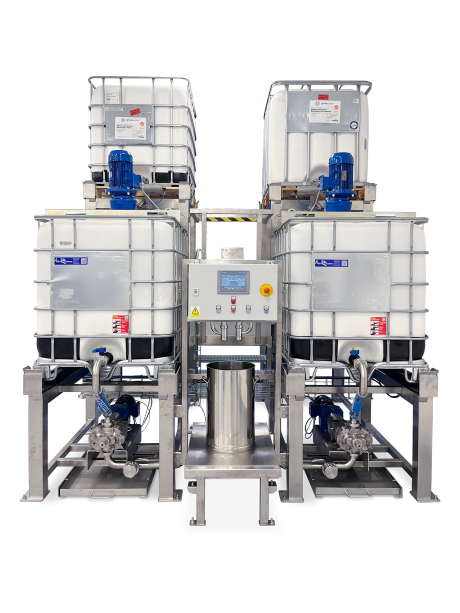

The unit ensures precise dosing of two types of acrylic base paint. Each side of the unit, designed for one type of paint, allows for easy replacement of the upper IBC container, from which the lower container is automatically refilled with continuous mixing. From this container, the operator doses the exact amount of paint as needed into the attached bucket. The dose serves as the basis for accurately determining the color shade of the resulting paint.

By using dosing valves and gentle pumps
with rotary pistons, extraordinary accuracy and gentle dosing are achieved. The unit is also optimized for easy cleaning.

SYSTEM PARAMETERS

• Flow rate: 30 l/min
• Pressure: 2 bar
• Accuracy: 10 g
• Medium: Acrylic base paint
• Medium concentration: 100 %
• Medium temperature: 20 °C
• Viscosity: 10 000 cP
• Height: 4.5 m
• Footprint: 3 × 3 m
• Weight: 700 kg
• Materials: SS316L
• Certifications: FDA, EU 1935/04

Used components

• Waukesha Universal I
• Fluidmix mixer
• APV SV1

Features

• Automatic IBC container cascade
• Double supply of each color
• Gentle pumping
• Easy cleaning
• Very high dosing accuracy in grams
