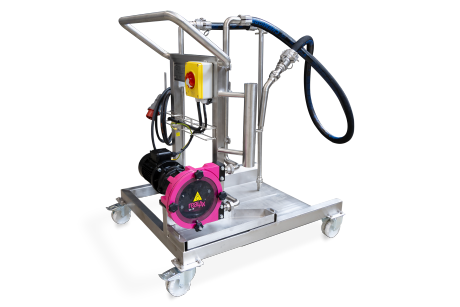

Mobile resin pumping unit
Mobile unit with peristaltic pump and dispensing tip for pumping resin from up to 200 liter barells. The trolley also includes a barell fastening strap and a drip tray for the dispensing tip.
System Description
Trolley for transporting and pumping resin
SYSTEM PARAMETERS
- Flow rate: 177 l/h
- Pressure: 1,5 bar
- Medium: resin
- Medium temperature: 20°C
- Viscosity: 200 cP
- Height: 0,88 m
- Footprint: 1 m x 0,8 m
- Weight: 80 kg
- Materials: Stainless steel 304, EPDM
Used components:
RealAx ISI16 peristaltic pump
Features:
The low clearance of the trolley's loading area, the possibility of locking the wheel brake and the quick-release belt allow the system operator to handle the unit easily.
