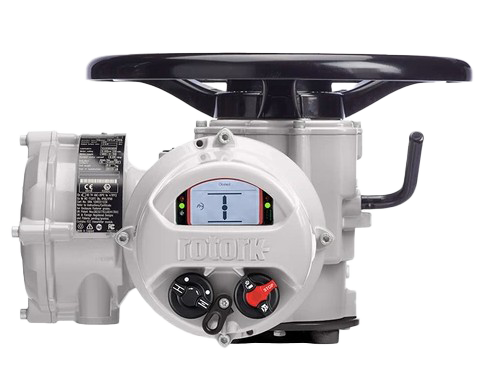

Rotork IQ3 pro actuator
SubCategory: ElectricActuators
Manufacturer: Rotork
Industry: WaterTreatment;Wastewater
Product features
- Suitable for both isolation and regulating duties, up to 60 starts per hour.
- “Connected platform” enabling smartphone configuration via the Rotork App and onboard data-logger export to PC or cloud.
- Enclosure rated to IP66/68 (7 m for 72 hours) and certified for explosion-proof/hazardous zone use.
- Continuous position tracking (through patented absolute encoder) and independent torque sensing for enhanced safety and reliability.
- Extensive network compatibility (EtherNet/IP, Modbus TCP, PROFINET) and multiport valve control capability (3 to 16 ports).
- Oil bath lubrication enabling any mounting orientation and extended service life.
- Hand-wheel manual operation available even when motorised; detachable thrust bases for easier installation and maintenance.
The IQ3 Pro actuator automates valves in demanding environments, supporting both multi-turn and part-turn duties for isolation and modulation. Its “connected” architecture enables configuration, monitoring and data extraction via smartphone, Bluetooth handset or PC, enabling asset management and preventive maintenance.
Performance-wise, it features a robust design with double-sealed enclosure, explosion-proof certificates, continuous position tracking even when power is lost, and advanced diagnostics via onboard data-logger. These features deliver operational reliability and reduced downtime.
From a design standpoint, the IQ3 Pro uses an oil-bath lubricated drive train with independent torque and position sensing, supports Ethernet and fieldbus communications, offers handwheel override, and is mountable in any orientation with detachable thrust bases for simplified installation.
