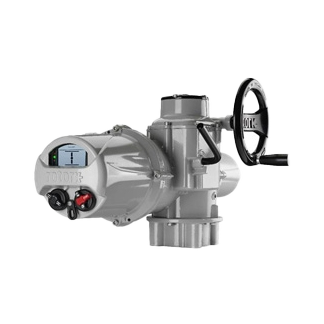

Rotork IQ multi turn

IQ3 Range multi-turn electric actuators can be used for isolation or regulating duties of up to 60 starts per hour. IQ3 Range actuators can be supplied as watertight or explosion-proof, watertight variants

Direct torque output range from 14 Nm (10 lbf ft) to 3,000 Nm (2,200 lbf ft)

With the addition of second stage gearboxes, multi-turn output torque up to 43,000 Nm and quarter turn up to 1,000,000 Nm is available

Enhanced sealing and maintenance access

All new design with updated visual appearance

Absolute position measurement with naturally redundant position sensor

Best in class display, communications, diagnostics and HMI

Configurable using Bluetooth® or infra-red

Designed to support asset management

“Future Proofed” to allow all embedded software to be upgraded in the field

Insight2 provides enhanced product data management
