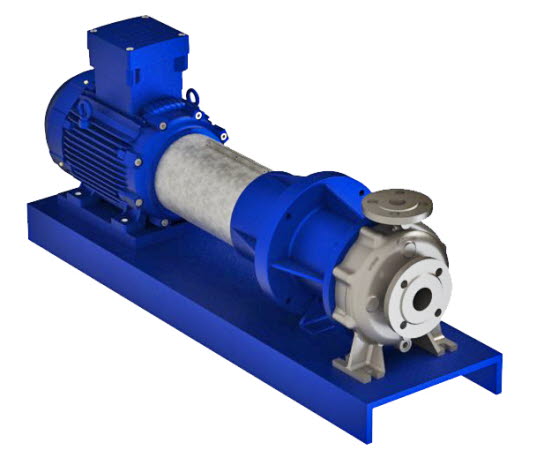

Gruppo Aturia NDM

High quality mag drive ISO pumps to ISO 2858 and ISO 5199.
+
Gruppo Aturia NDM_gallery_1
Gruppo Aturia ISO cu cuplaj magnetic NDM_gallery_2
Gruppo Aturia ISO cu cuplaj magnetic NDM_gallery_3
Gruppo Aturia ISO cu cuplaj magnetic NDM_gallery_3
Gruppo Aturia NDM_gallery_1
Gruppo Aturia ISO cu cuplaj magnetic NDM_gallery_2
Gruppo Aturia ISO cu cuplaj magnetic NDM_gallery_3
Gruppo Aturia ISO cu cuplaj magnetic NDM_gallery_3

Let us help you find the right product from this product line

Key specifications

  • Flows Up To 200 m³/h
  • Pressure Up To 10 bar

Product description

NDM pumps have hydraulically and hydrostatically balance pump chambers and Hastelloy rear housings, Samarium Colbalt magnets and Silicon Carbide bears as standard.  They are available as either a long or close coupled construction.

Construction

Alignment
Horizontal
Materials
Carbon Steel, Duplex, Hastelloy, MONEL, Super Duplex, Stainless Steel, Titanium
Seal
Mag Drive
Coupled
Long

Performance

Max. capacity
200 m³/h
Max. diff. press.
10 bar
Max. temperature
300 Celsius
Max. viscosity
150 cP
Min. temperature
-50 Celsius
Max. head
100 m

Certificates

Cert-image

ATEX

Cert-image

CE Marking

Cert-image

FDA

Cert-image

ISO 14001

Cert-image

ISO 14001 AFNOR

Cert-image

ISO 5199 & ISO 2858

Cert-image

ISO 9001

Where to use

Chemical

Water and wastewater treatment
