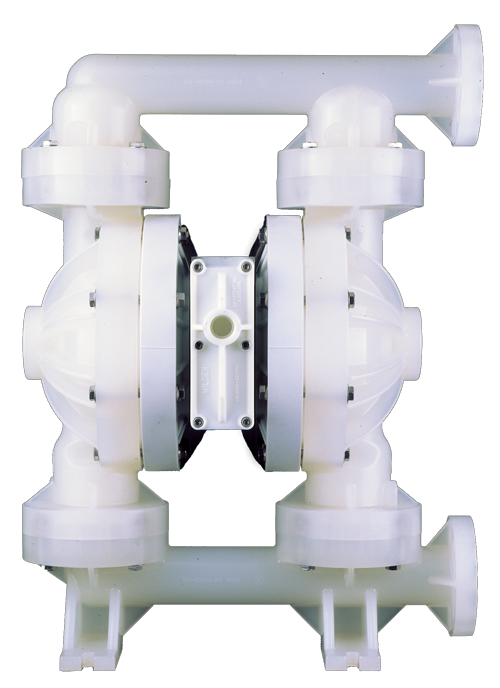

Wilden Bolted Plastic Pumps
fluidity.nonstop

Wilden Bolted Plastic Pumps

Plastic AODD pumps for flows up to 50 m3/hr and 8 bar

Product description

A variety of elastomer options including Teflon® PTFE are available to meet abrasion, temperature, and chemical compatibility concerns. The Advanced™ Series plastic pumps are offered in polypropylene, PVDF and Teflon® PFA. A variety of options such as ANSI and DIN flanges and specialized air distribution systems are available to meet your specific application requirements.

Product features
Specifications
Type AOD/AODD Pumps
Alignment Horizontal
Seal Seal-Less
Coupled Close
Manufacturer
Max. capacity 1024 l/min
Min. temperature -51° Celsius
Max. temperature 177° Celsius
Max. differential head/pressure 8.6 bar
Max. particle size 13 mm
Displacement per revolution 5.8 l/rev
Max. head 50 m
Wilden Bolted Plastic Pumps
Model Max. capacity [l/min] Max. diff. press. [bar] Disp. rev. [l/rev.] Max. diam. solids [mm] Inlet [mm] Outlet [mm] Min. temp. [C] Max. temp. [C] Dry suction lift [m] Wet suction lift [m]
Wilden P25 Bolted Plastic 16.7 8.6 0.04 0.7 6 6 -51 177 1.9 9.3
Wilden P100 Bolted Plastic 58.7 8.6 0.11 1.6 13 13 -51 177 5.5 9.3
Wilden P200 Bolted Plastic 220 8.6 0.5 4.76 25 25 -51 177 3.6 9.8
Wilden P400 Boltec Plastic 454 8.6 1.34 6.35 38 38 -51 177 5.5 9.3
Wilden PS400 Bolted Plastic 458 8.6 1.1 6.4 38 38 -51 177 5.6 9
Wilden P800 Bolted Plastic 624 8.6 2.78 6.4 51 51 -51 177 6.1 9
Wilden PS800 Bolted Plastic 709 8.6 2.6 6.4 51 51 -51 177 5.9 8.3
Wilden P1500 Bolted Plastic 878 8.6 5.8 12.7 76 76 -51 138 5.5 8.6
Wilden PS1500 Advanced Plastic Pump 1024 8.6 5.4 13 76 76 -51 177 5.8 8.6
All certifications and standards listed for each product are certified by the manufacturer of each product and remain the manufacturer’s liability.
