FPX Delta Series
Category: Pumps
SubCategory: CentrifugalPumps
Manufacturer: FPXSolutions
Industry:
SubCategory: CentrifugalPumps
Manufacturer: FPXSolutions
Industry:
Split case, double suction pumps flows to 18,000 m3/hr and heads of 250 m.
+
Key specifications
- Flows up to 800 m³/h
- Pressure Up To 90 bar
FEATURES AND BENEFITS
- Newly designed hydraulics offering optimum efficiency
- Low NPSH designs available
- Intrinsic hydraulic balance of axial thrust
- Models to direct replace legacy Worthington Simpson split case pumps
- Grease or oil lubricated roller bearings
- Bearings designed for easy maintenance and extended service life
- Full installation and commission service offered
Description

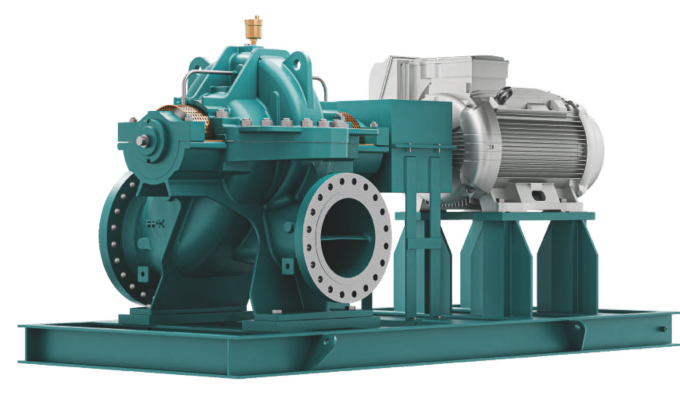

Delta Series pumps are horizontally axially split casing, single stage, double suction with heavy duty shaft. Two stage / double volute for high head pumps are also available. Rotating assembly can be taken out for easy inspection and maintenance by removing only upper casing half, without disturbing pump alignment, suction and discharge pipe. Modular component designs for maximum interchangeability. Removal of old and installation of new units also can be offered by AxFlow’s experienced on site team.
