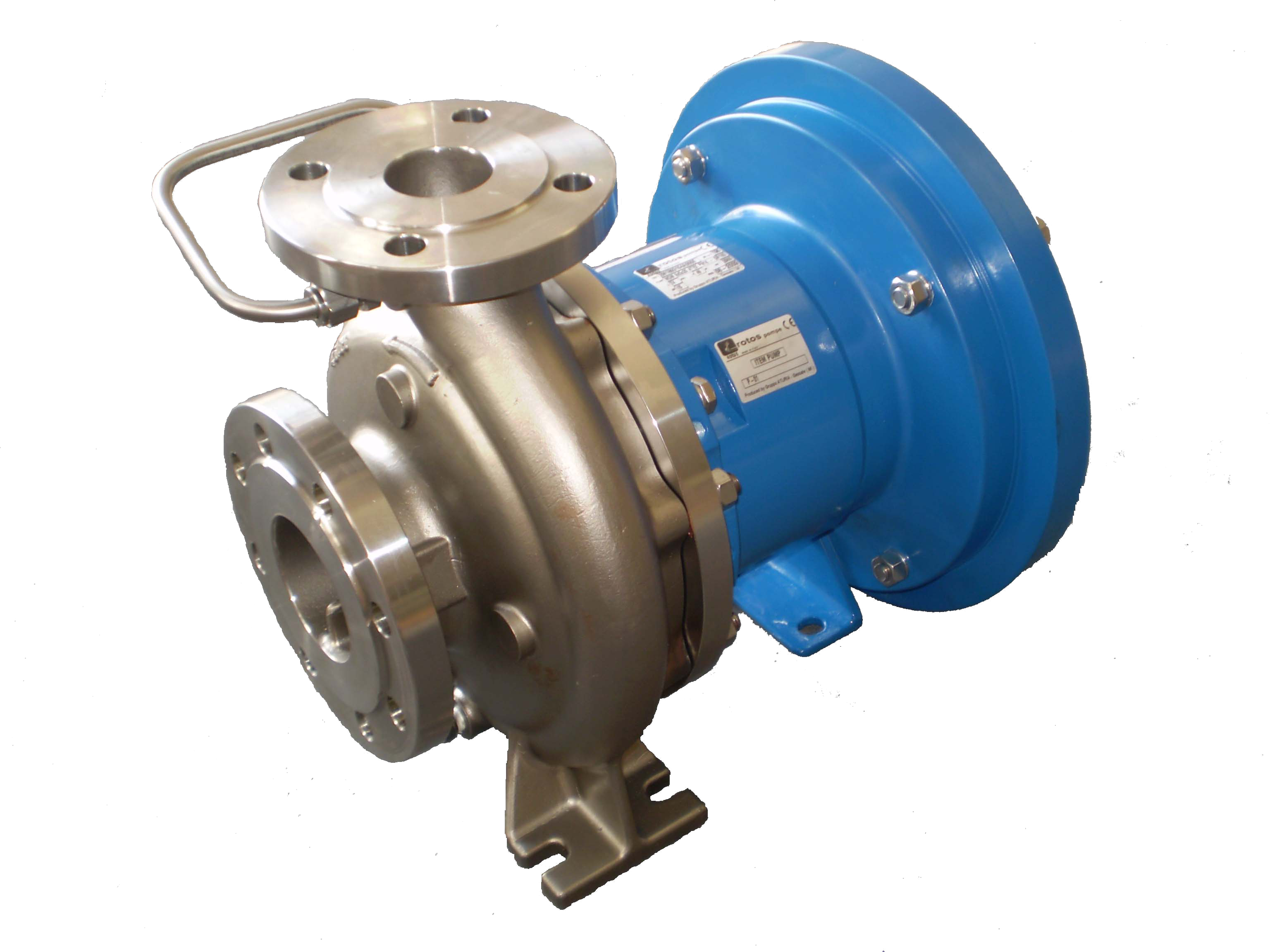

Gruppo Aturia - NDM

ISO 2858 - ISO 5199 mag drive process pumps for flows up to 1700 m3/hr and heads of 140 m

Key specifications

  • Flows up to 200 m³/h
  • Pressure Up To 10 bar

FEATURES AND BENEFITS

  • Exceptionally thick walled Hastelloy rear housings as standard.
  • No mechanical seals to leak or service.
  • Oil lubricated ball bearings.
  • Incoloy or Hastelloy constructions available.
  • Back pull out design with screw-on impeller.
  • Available with self cleaning filters.
  • Available with Nace welding.

Description

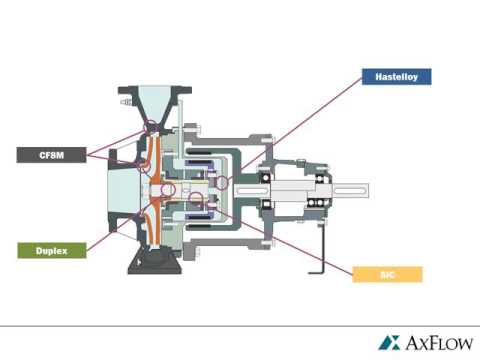

NDM pumps have hydraulically and hydrostatically balance pump chambers and Hastelloy rear housings, Samarium Colbalt magnets and Silicon Carbide bears as standard.  They are available as either a long or close coupled construction.


Let us help you find the right product from this product line

Construction

Alignment
Horizontal
Materials
Carbon Steel, Duplex, Hastelloy, MONEL, Super Duplex, Stainless Steel, Titanium
Seal
Mag Drive
Coupled
Long

Performance

Max. capacity
200 m³/h
Max. diff. press.
10 bar
Max. temperature
300 Celsius
Max. viscosity
150 cP
Min. temperature
-50 Celsius
Max. head
100

Certificates

ATEX

CE Marking

ISO 5199 & ISO 2858
