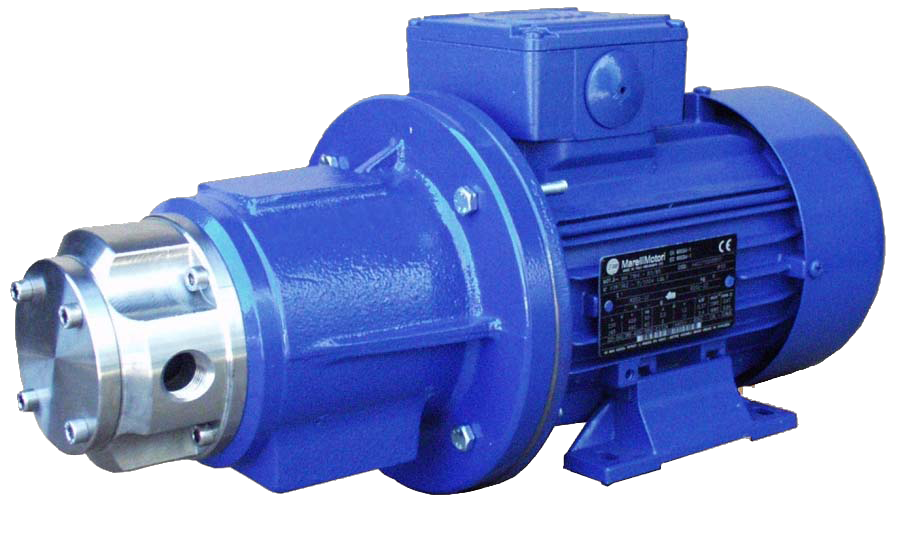

Gruppo Aturia - SVM Rotary Vane Pump

stainless steel mag drive vane pumps with no flow pulsation flows to 2 m3/hr and pressures of 13 bar.

Key specifications

  • Flows up to 2 m³/h
  • Pressure Up To 13 bar

FEATURES AND BENEFITS

  • High heads - low flows.
  • Viscous or thin liquids.
  • Available with metallized graphite.
  • Dry running capability.
  • Threaded, PN, Tri-Clamp or ANSI flanges.
  • SS plus options of Duplex and Hastelloy.

Description

Robust, high specification mag drive rotary vane pumps designed with a flow path which produces no pulsation. SVM pumps can be configured to a range of different applications and will pump fluids up to 300 oC.


Let us help you find the right product from this product line

Construction

Alignment
Vertical, Horizontal
Materials
Carbon Steel, Duplex, Hastelloy, MONEL, Super Duplex, Stainless Steel, Titanium
Seal
Mag Drive
Coupled
Close, Long

Performance

Max. capacity
2 m³/h
Max. diff. press.
13 bar
Max. temperature
250 Celsius
Max. viscosity
200 cP
Min. temperature
-50 Celsius
Max. head
130

Certificates

API 676

ATEX

CE Marking

EHEDG

ISO 9001
