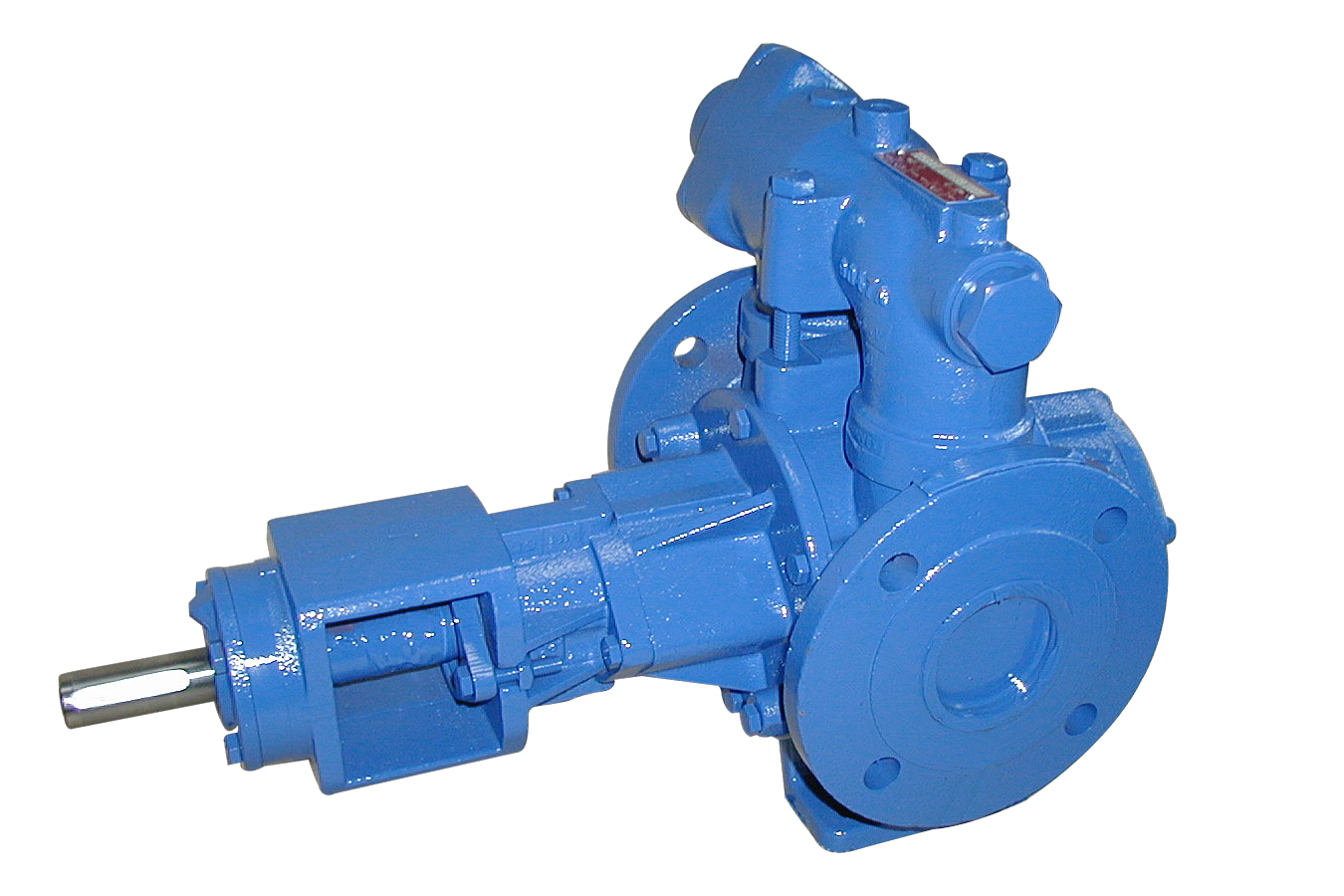

Mouvex P Series

Designed to transfer chocolate related products for flows up to 110 m3/hr and 12 bar pressure

Key specifications

  • Flows up to 110 m³/h
  • Pressure Up To 12 bar

FEATURES AND BENEFITS

  • CIP and SIP compatible.
  • Performance remains constant over time.
  • Dry-run capability.
  • Can be supplied with built-in heating or cooling jackets.
  • Low linear speed.

Description

The Mouvex P series vane pump P Series vane pumps cover a large range of applications, from fluid to very viscous products, whether they are non-lubricating, abrasive or corrosive they have proofed particularly successful use with chocolate products.


Let us help you find the right product from this product line

Construction

Alignment
Horizontal
Materials
Cast Iron, Stainless Steel
Seal
Mechanical Seal
Coupled
Long

Performance

Max. capacity
110 m³/h
Max. diff. press.
12 bar
Max. temperature
250 Celsius
Max. viscosity
200000 cP
Min. temperature
-5 Celsius
Max. head
120

Certificates

CE Marking

FDA

ISO 9001
