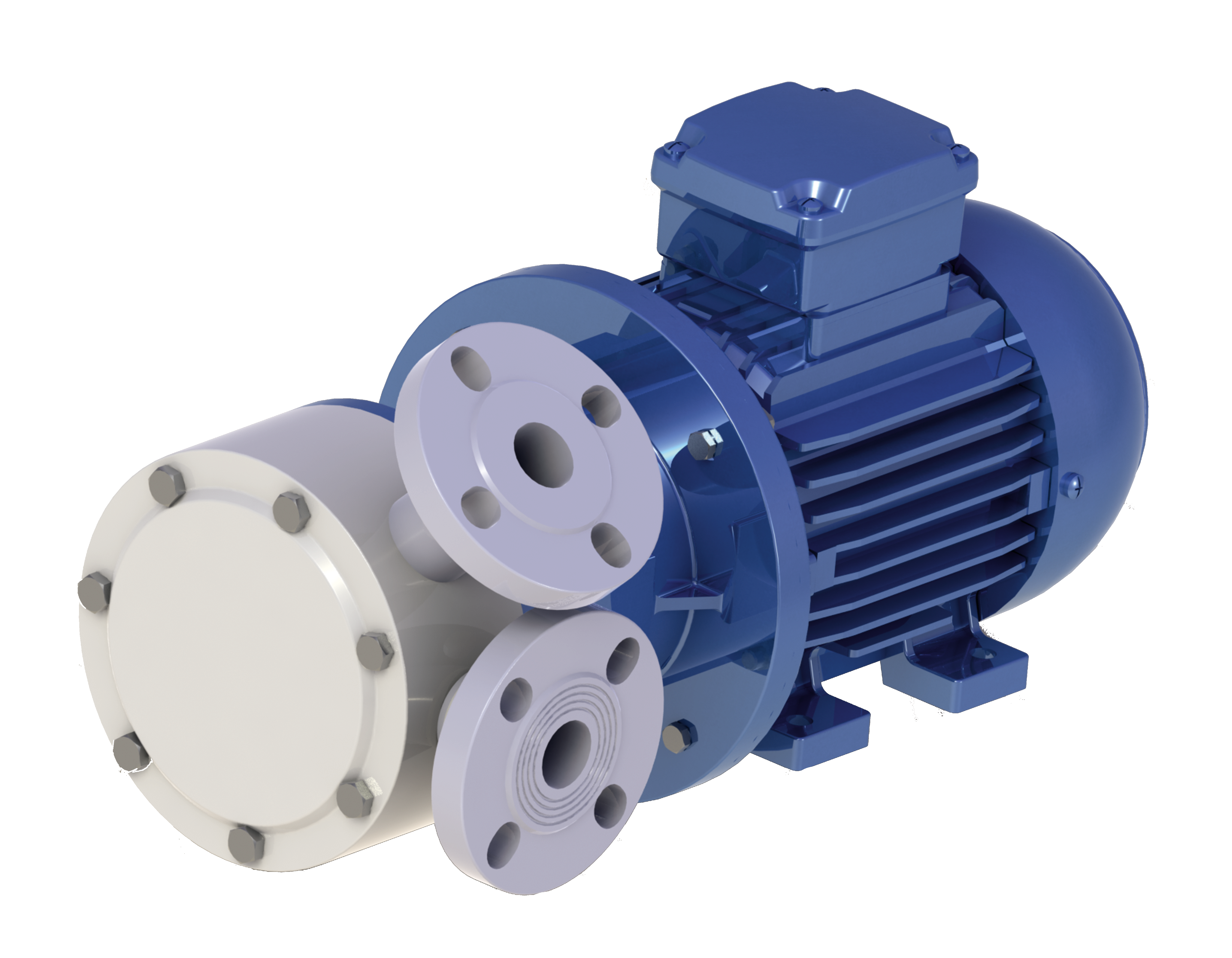

Gruppo Aturia - PTM
Mag drive turbine pumps in PP and PVDF for flows up to 15 m3/hr and heads of 55m
+
Key specifications
- Flows up to 15 m³/h
- Pressure Up To 5.5 bar
FEATURES AND BENEFITS
- Chemically resistant.
- Threaded or flanged.
- Can be mounted vertically.
- Will pump 20% entrained gases.
- PP - PVDF.
Description
No mechanical seals to leak or service.
Let us help you find the right product from this product line
Construction
Alignment
Horizontal
Materials
Polypropylene, PVDF
Seal
Mag Drive
Coupled
Close
Performance
Max. capacity
15 m³/h
Max. diff. press.
5.5 bar
Max. temperature
80 Celsius
Max. viscosity
150 cP
Min. temperature
-20 Celsius
Max. head
55 m
Certificates
ATEX
CE Marking
ISO 9001
