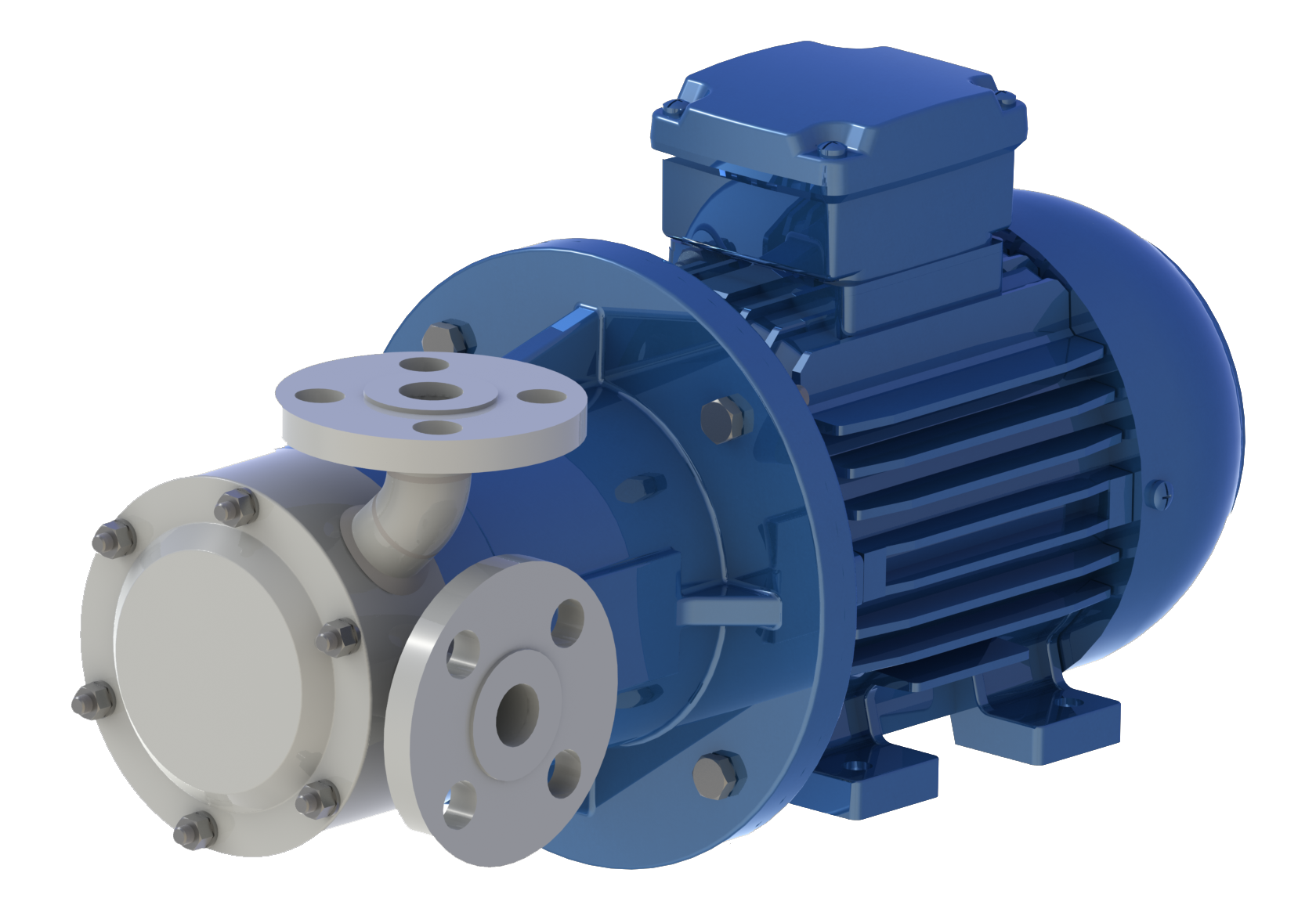

Gruppo Aturia - STM
Mag drive turbine pumps with API 685 option for flows to 10 m3/hr and heads of 90 m
Product description
High specification regenerative turbine pumps for high heads/low flow applications. Because STM pumps are machined from solid metal, they are offer an extremely wide range of design options and construction materials. Comply to API 685.
Product features
- High system pressure capability up to 200 bar.
- Can be vertically mounted.
- Polished internal surfaces available.
- Will pump up to 20% entrained gasses.
- Threaded, Tri-Clamp, PN or ANSI flanges.
- No mechanical seals to leak or service.
+
Specifications
| Type | Turbine Pumps |
| Alignment | Vertical, Horizontal |
| Seal | Mag Drive |
| Materials | Carbon Steel, Duplex, Hastelloy, MONEL, Super Duplex, Stainless Steel, Titanium |
| Coupled | Close, Long |
| Manufacturer |
|
| Max. capacity | 10 m³/h |
| Max. viscosity | 150 cP |
| Min. temperature | -50° Celsius |
| Max. temperature | 300° Celsius |
| Max. differential head/pressure | 9 bar |
| Max. head | 90 m |
All certifications and standards listed for each product are certified by the manufacturer of each product and remain the manufacturer’s liability.
