Dock Impounding Pump Repair

Monday, 22 July 2019

Repair of axial flow pump

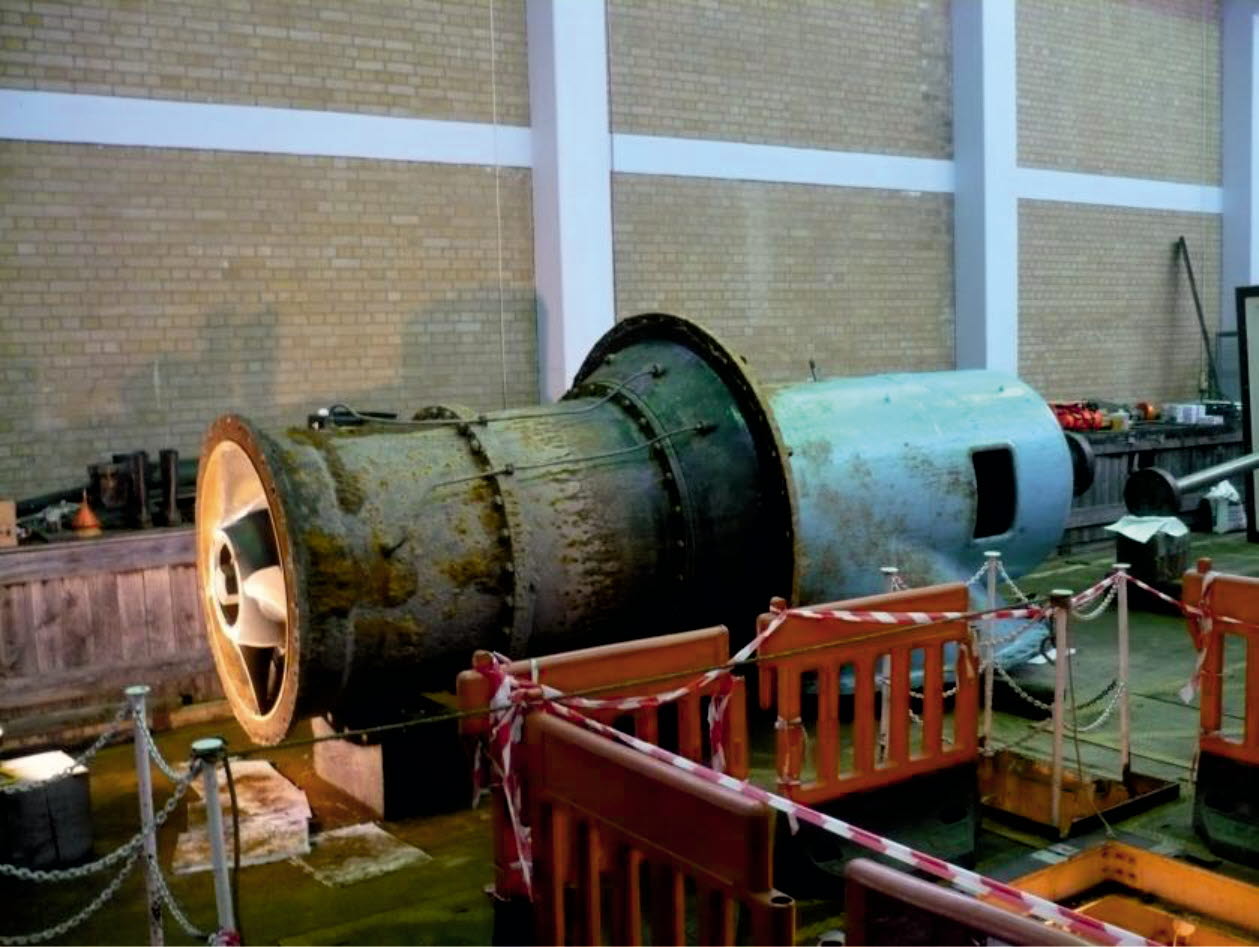

Vickers axial flow pump before repair, with the propeller visible
Vickers axial flow pump before repair



Product:
Vickers 44" A/F vertical axial flow pump.

Industry:
Docks.

Challenge:
To remove repair and re-install the pump which suffered from a range of problems including cavitation damage of the propeller, corrosion damage of the rising main and a leaking bottom seal. Vickers pumps are obsolete so spare parts are no longer available.

Work Carried Out:

  • The propeller were repaired and reshaped.
  • Sleeves fitted to pump housing to maintain original clearances.
  • Gland packing was replaced with mechanical seals.
  • Pump shaft repaired and Belzona coated.
  • Pump shaft cut below impeller and a cutless bearing with support plate was installed instead.
  • New bellhousing in GRP was manufactured and fitted.





Propeller tips before and after



Failed bearing sleeve as removed



 Propeller cavitation damage and repaired propeller





 Damaged rising main - Belzona caoted rising main

Repaired Vickers axial flow pump being lifted for reinstallation

Repaied pump at re-installation
