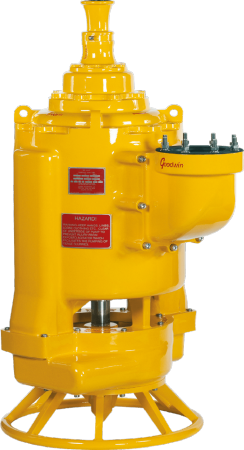

Goodwin SSP Submersible Pumps

Submersible slurry pumps flows to 800 m3/hr and heads of 53 m.

Let us help you find the right product from this product line

Key specifications

Flows up to 800 m³/h
Pressure Up To 5.3 bar

FEATURES AND BENEFITS

Single piece cast iron motor housing
Motor completely enveloped in oil bath
Cooling via pumped liquid
Twin volute casing to reduce imbalances.
Rotating inducer to resuspend solids below pump suction
Can handle up to 65% solid content
Max particle size 76 mm
ATEX certified

Description

Deliberately designed for strength, every aspect of the pump is created for reliability. From electric motors with large reserves of capacity, to impellers made of the toughest alloys, nothing is overlooked when creating a Goodwin submersible slurry pump. Three constructions are available NZE, ANZE and HNZB that offer differing flows, heads and solids handling capabilities.

Construction

Alignment

Vertical

Materials

Ni-Hard, Stainless Steel, Tungsten Carbide

Seal

Mechanical Seal

Coupled

Performance

Max. capacity

800 m³/h

Max. diff. press.

5.3 bar

Max. head

53 m
