Wilden Pro-Flo Pumps
As the industry's workhorse, the Wilden Pro-Flo® Series combines elegant simplicity with robust and reliable performance that end users have come to depend on for more than 20 years.
The Wilden Pro-Flo® SHIFT (PS Series) sets a new standard in air-operated double-diaphragm (AODD) pump efficiency and reliability. Engineered by Wilden, a PSG Dover brand, it delivers up to 60% air savings and 34% higher flow rates compared to conventional AODD pumps. Ideal for chemical, industrial, hygienic and wastewater applications, the Pro-Flo SHIFT is designed for low energy use, high throughput, and simple maintenance.

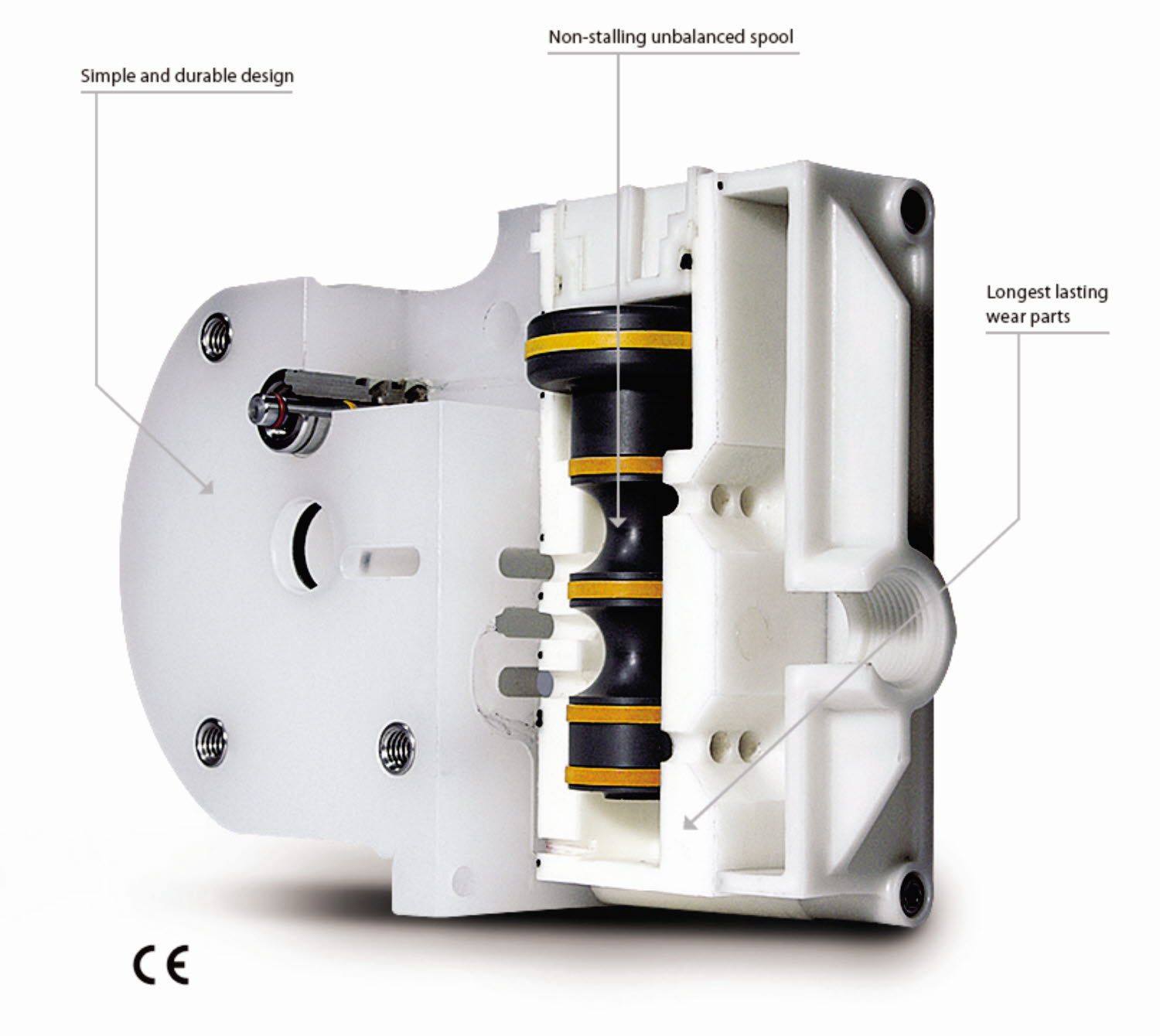

Pro-Flo SHIFT Air Distribution System (ADS)
A patented air-control spool optimises air flow, eliminating over-charging and stalling while delivering full-stroke performance. The result: maximum productivity with minimum air consumption.
Streamlined Flow Path
Optimised wetted-chamber geometry ensures smooth flow, high suction lift, and efficient solids handling.
Durable Design
Few moving parts and corrosion-resistant materials mean longer service life and less downtime. Available in metal (aluminium, stainless steel, alloy C) or plastic (PP, PVDF) constructions with bolted or clamped configurations.
Benefits of Wilden Pro-Flo Pumps
-
Energy Efficient – up to 60% less air usage
-
High Output – 34% higher flow rate
-
Non-stalling, non-icing operation
-
Handles viscous & abrasive fluids
-
Easy maintenance & quick diaphragm change
| Feature | Specification |
|---|---|
| Air pressure | Up to 8.6 bar / 125 psi |
| Flow rate | Up to 1,000 L/min (271 gpm) |
| Solids passage | Up to 35 mm |
| Suction lift | Up to 9 m (wet), 7 m (dry) |
| Sizes | ¼″ to 4″ ports |
| Air savings | Up to 60% vs. standard AODD |
Installation & Support
Pro-Flo SHIFT pumps install easily using standard air supply lines and connections. Regular inspection of diaphragms and air components ensures long-term reliability.
AxFlow and Wilden provide full technical support, spares, and service kits for all configurations.
Ideally suited for industrial applications calling for a durable chemical pump or oil pump, Pro-Flo Series pumps offer increased productivity with more flow while reducing air consumption and maintenance.
The Pro-Flo Series gives you extreme flexibility and reliability – with a wide range of sizes and material offerings – that end users can count on to deliver the consistent performance promised for challenging applications.
