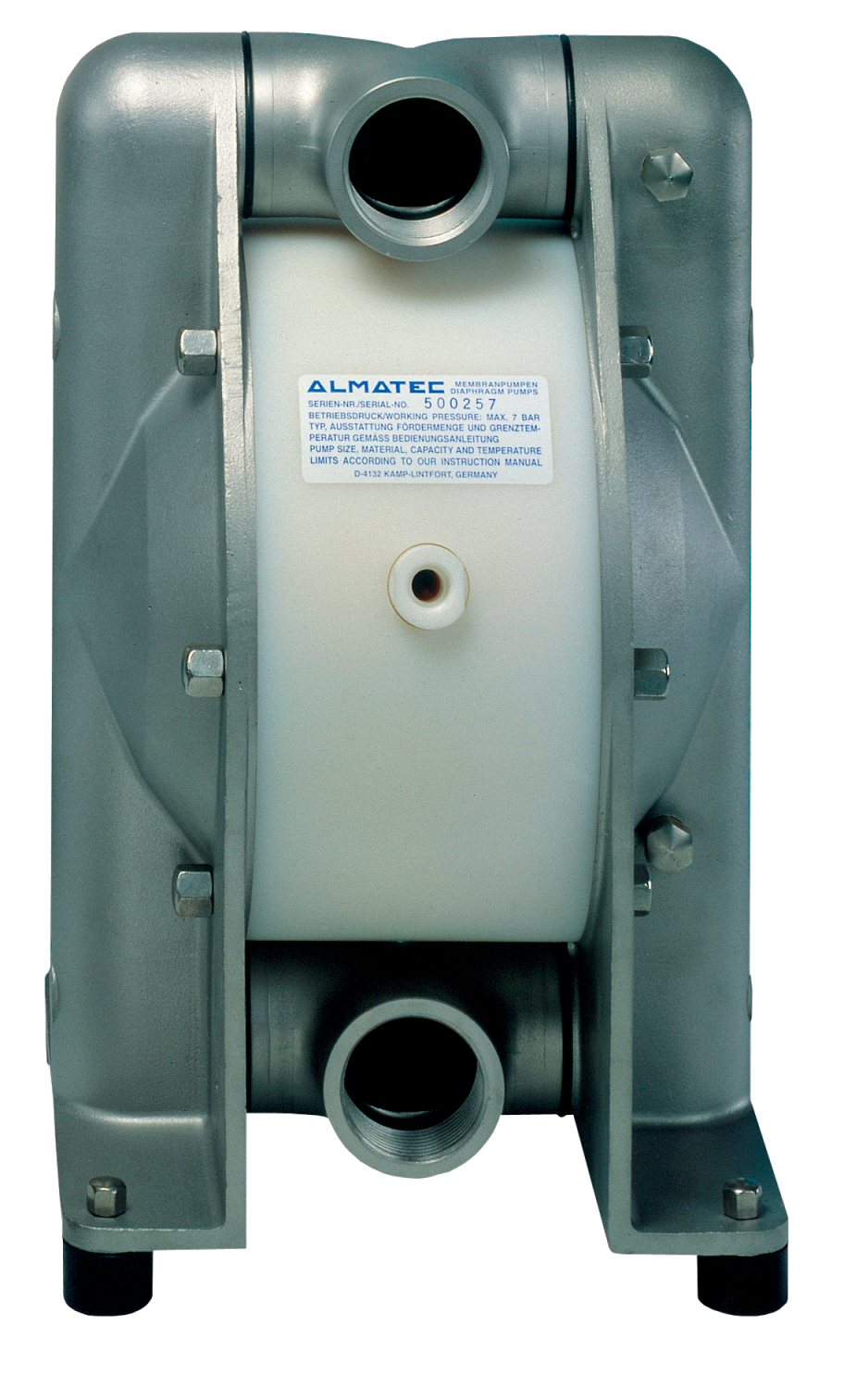

Almatec Chemicor Pump
AOD pumps with no dead spaces and high contaiment max flow 25m3/hr max pressure 7 bar
Product description
These metal pneumatic diaphragm pumps feature soft contours, smooth flow channels and no dead spaces. CHEMICOR pumps contain a center block made of nylon or PE.
Product features
- Reliable and robust.
- Dry priming and dry running.
- High levels of liquid containment.
- Extremely resistant to aggressive chemicals.
- Will deliver variable flow and pressure.
- Sizes 1/2” to 3”.
- NPT, DIN or ANSI flange connections.
- Housing - stainless steel precision casting 1.4408, 1.4408 polished
- Diaphragms - EPDM, PTFE/EPDM
- Ball valves - EPDM, PTFE
+
Specifications
| Type | AOD/AODD Pumps |
| Alignment | Horizontal |
| Seal | Seal-Less |
| Coupled | Close |
| Manufacturer |
|
| Max. capacity | 6666.66667 l/min |
| Max. temperature | 130° Celsius |
| Max. differential head/pressure | 7 bar |
| Max. head | 70 m |
| Model | Max. capacity [l/min] | Max. diff. press. [bar] | Max. diam. solids [mm] | Max. temp. [C] | Dry suction lift [m] | Wet suction lift [m] | |
|---|---|---|---|---|---|---|---|
| AD 20 | 75 | 7 | 9 | 130 | 2 | 9 | 6 |
| AD 32 | 150 | 7 | 12 | 130 | 2 | 9 | 13 |
| AD 50 | 400 | 7 | 14 | 130 | 3 | 9 | 29 |
All certifications and standards listed for each product are certified by the manufacturer of each product and remain the manufacturer’s liability.
