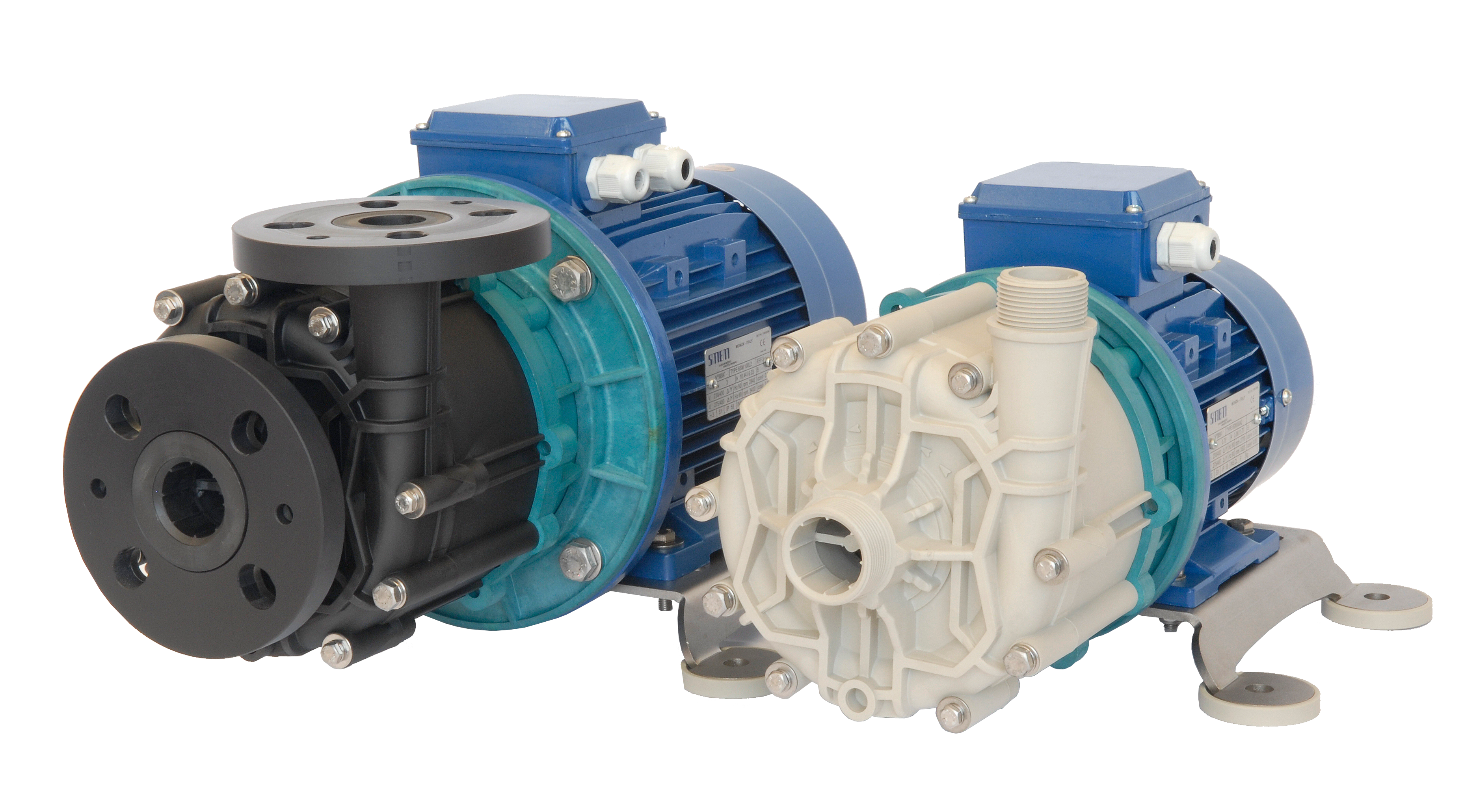

Argal ROUTE

Mag drive or mech sealed pumps for flows to 50 m3/hr

Key specifications

  • Flows up to 50 m³/h

FEATURES AND BENEFITS

  • Mag drive or mech sealed.
  • Dry running option available for mag drive models.
  • PP or ETFE
  • Single and double seals.
  • Optional stainless steel casing reinforcement.

Description

ROUTE pumps are available in magnetic driven and mechanical seal versions for pumping a diverse range of chemicals with impurities and suspended solids.

A patented system for dry running without damage is available for the magnetic driven “T” version. ARGAL’s ex-proof configuration made of PP or E-CTFE + carbon fiber makes ROUTE pumps ideal for operating in explosive atmospheres.

The pumps can also be fitted with a stainless steel casing harness to improve their physical robustness.

Strong magnetic coupling made of rare-earth materials(Neodimium Iron Boron) and “N” (standard), “P”(powered) or “S” (strongly powered) versions allow topump liquids with 1.05 - 1.35 - 1.8 specific grativy respectively.


Let us help you find the right product from this product line

Construction

Materials
ECTFE, Polypropylene
Coupled
Close

Performance

Max. capacity
50 m³/h
Max. temperature
90 Celsius
Min. temperature
-30 Celsius
Max. head
41

Certificates

ATEX

CE Marking
