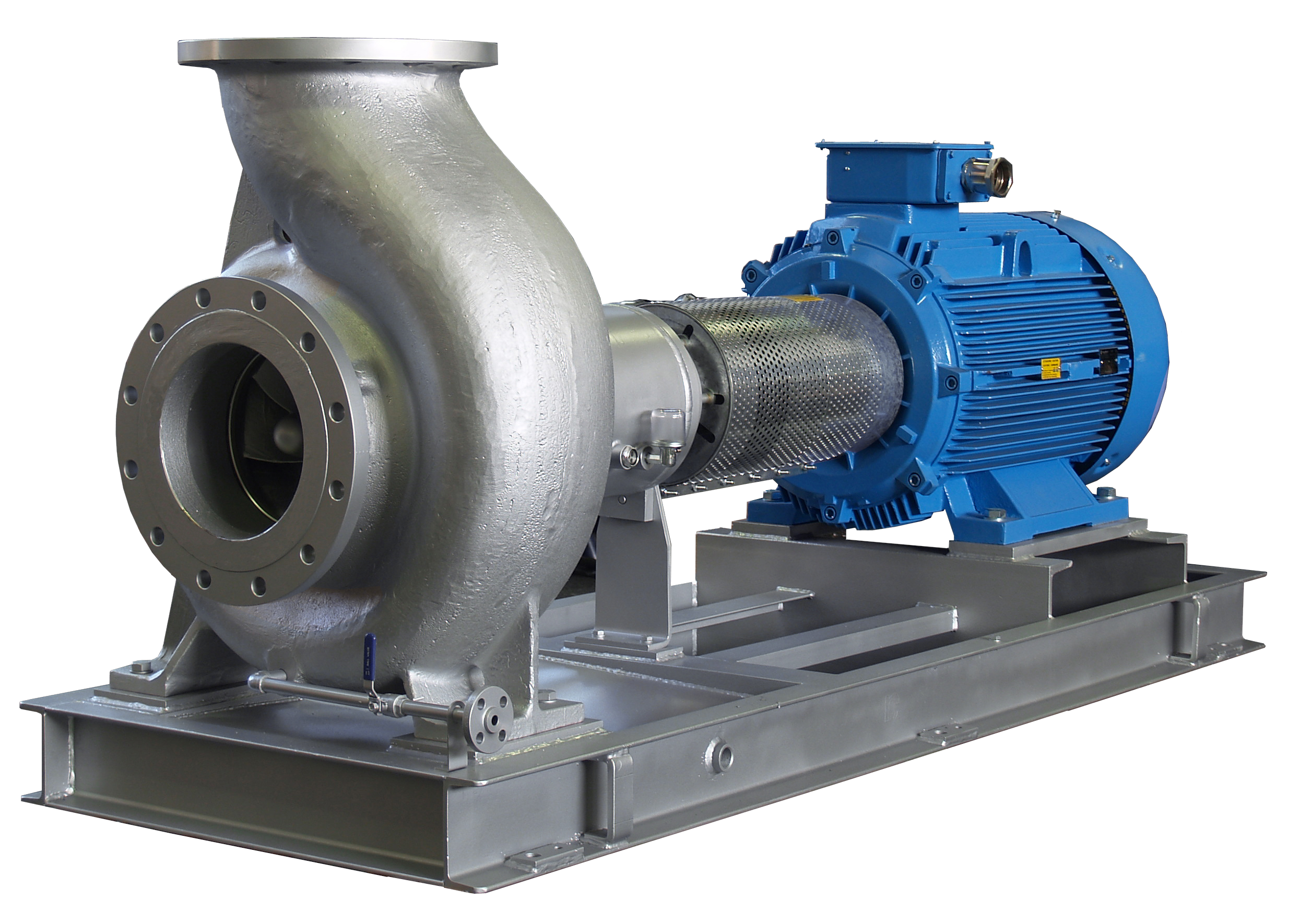

Gruppo Aturia - ND
Category: Pumps
SubCategory: CentrifugalPumps
Manufacturer: GruppoAturia
Industry: AdhesivesProduction;Chemical;DetergentProduction;FertilizerProduction;PaintResinProduction;PaperMills;PowerGeneration;SurfaceFinishing;WaterTreatment
SubCategory: CentrifugalPumps
Manufacturer: GruppoAturia
Industry: AdhesivesProduction;Chemical;DetergentProduction;FertilizerProduction;PaintResinProduction;PaperMills;PowerGeneration;SurfaceFinishing;WaterTreatment
ISO 2858 - ISO 5199 process pumps for flows up to 1700 m3/hr and heads of 140 m
+
Key specifications
- Flows up to 1700 m³/h
- Pressure Up To 14 bar
FEATURES AND BENEFITS
- Dynamically balanced impellers.
- Oil lubricated ball bearings.
- Back pull out design.
- Labyrinth seals on bearing supports to negate external contamination.
- Single, double, flushed and API 682 seals.
- Optional Refrigerated seal chamber.
- SS with DX or Hastelloy options.
Description
High quality ISO 2858 pumps that can also be constructed to ISO 5199 process pumps refined over many years service life to offer an efficient and balanced pump design. Most components are stocked resulting in short lead times..
Let us help you find the right product from this product line
Construction
Alignment
Horizontal
Materials
Carbon Steel, Duplex, Hastelloy, MONEL, Super Duplex, Stainless Steel, Titanium
Seal
Mechanical Seal
Coupled
Long
Performance
Max. capacity
1700 m³/h
Max. diff. press.
14 bar
Max. temperature
300 Celsius
Max. viscosity
300
Min. temperature
-20 Celsius
Max. head
140 m
Certificates
ATEX
ISO 5199 & ISO 2858 Pumps
