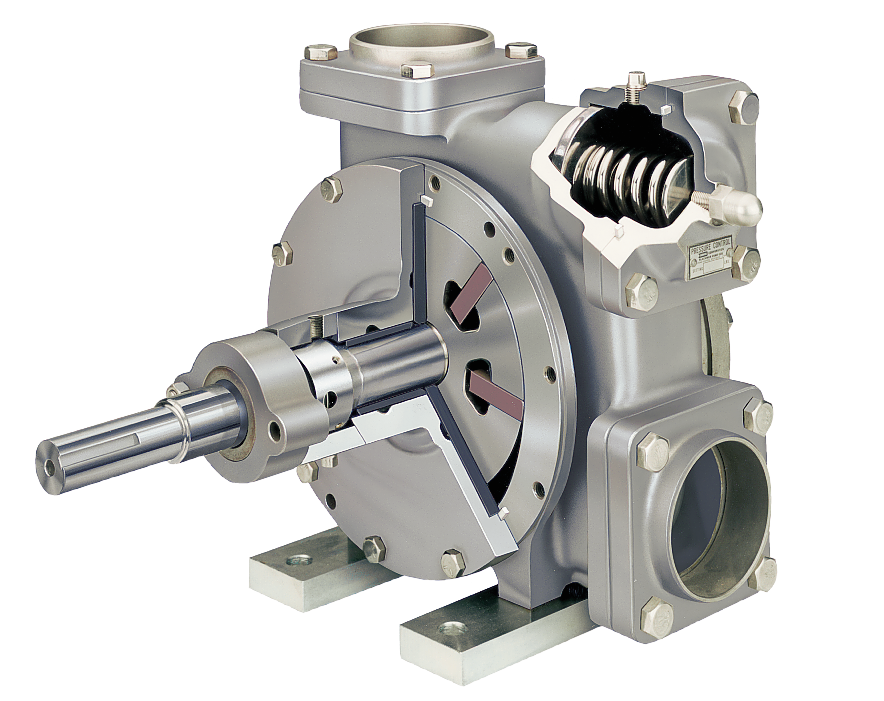

Blackmer SNP

Stainless steel vane pumps for corrosive fluids flows up to 60 m3/hr and pressures of 7 bar

Key specifications

  • Flows up to 60 m³/h
  • Pressure Up To 13.8 bar

User benefits

  • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates.
  • Pump design and operation minimizes shear and agitation.
  • Excellent self-priming and dry run capabilities.
  • Symmetrical bearing support assures even loading and wear for long life.
  • Adjustable relief valve protects pump against excessive pressures.
  • Easy maintenance: vanes can be easily replaced without removing the pump from the piping system.

FEATURES AND BENEFITS

  • Jacketed pump heads available.
  • Excellent self-priming and dry run capabilities.
  • Symmetrical bearing support assures even loading and wear for long life.
  • Adjustable relief valve protects pump against excessive pressures.
  • Vanes can be replaced without removing the pump from the piping system.
  • 316 stainless steel construction with metallized carbon sleeve bearings and non-metallic vanes for longer life with corrosive products.
  • Unique non-galling design features reduce maintenance costs and operational difficulties.
  • Optional John Crane or Flowserve mechanical seal with stainless steel, carbon, and PTFE construction.
  • Shaft stuffing box accommodates most standard aftermarket mechanical seal configurations.
  • Jacketed pump head option for high temperature operation.

Description

Blackmer SNP pumps are typically used in handling a variety of corrosive or caustic fluids such as acids, brines and liquid foods such as sugars, syrups, beer, beet juice, cider and flavor extracts.


Let us help you find the right product from this product line

Construction

Alignment
Horizontal
Materials
Ductile Iron, Stainless Steel
Seal
Mechanical Seal
Coupled
Long

Performance

Max. capacity
60 m³/h
Max. diff. press.
13.8 bar
Max. temperature
240 Celsius
Max. viscosity
22000 mPa·s
Min. capacity
2 m³/h
Min. temperature
-5 Celsius
Max. head
70

Certificates

API 676

ATEX

CE Marking
